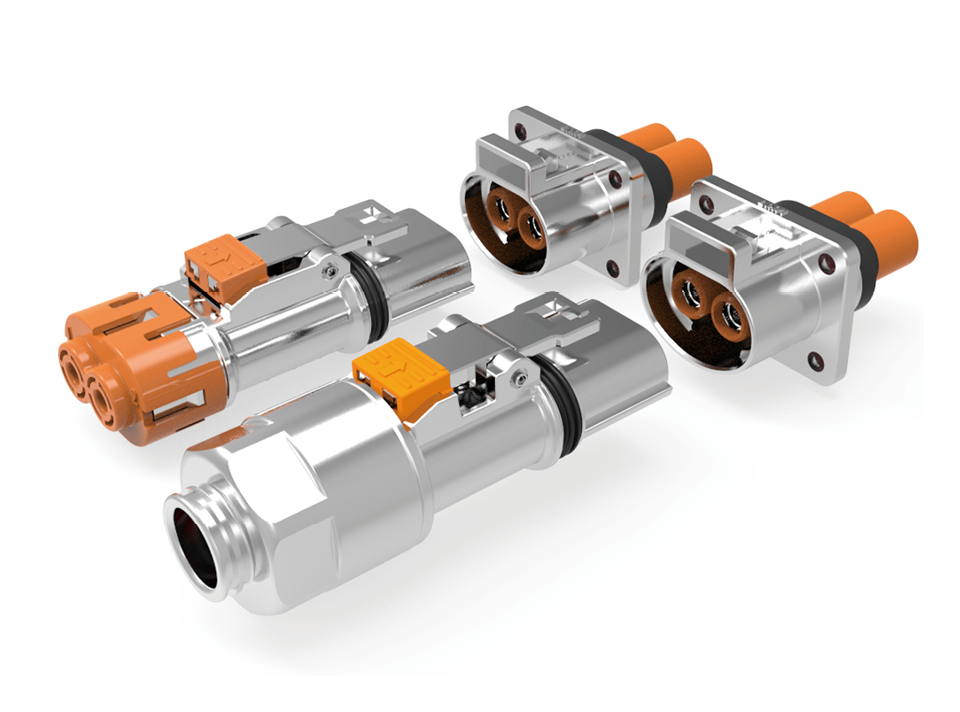

PRC 2PIN 60A SOLUTION
Product background：
This document mainly contains the relevant data of our PRC60A two-core connector, the rated voltage of the PRC60A two-core connector designIt is 1500VDC, rated current is 60A, it has 360 shielding function, and at the same time meets the harsh waterproof requirements of the car; PRC60A two-core connector can connect 2.5-10mm cables verified by our experiments. Motor controller and other scenarios.
Safety Precautions:
- This product is used in high voltage and high current environments.
- Please install, use and maintain the product correctly; incorrect use of the product may cause serious injury and loss.
- If the product is abnormal, such as being modified or damaged, please do not continue to use it to avoid accidents.
- Do not insert or remove the connector when the product is powered on.
- Do not overload for a long time to avoid potential safety hazards.
Basic parameters:
| Rated current（DC） | 60A Max. |
| Rated voltage（DC） | 1500V |
| Temperature class | -40°C to +125°C (Including temperature rise) |
| Fire-proof level | UL94 V-0 |
| Service life (times)） | 100 Min. |
| Safety protection level | IP68/IP6K9K |
| shield | Single-core shielded wire, two-core shielded wire |
| High Voltage Interlock (HVIL) | Have |
| Temperature control | Have |
| Key position |
Single-core shielded wire: X / Y / U / V
Two-core shielded wire: X / Y / U
|
